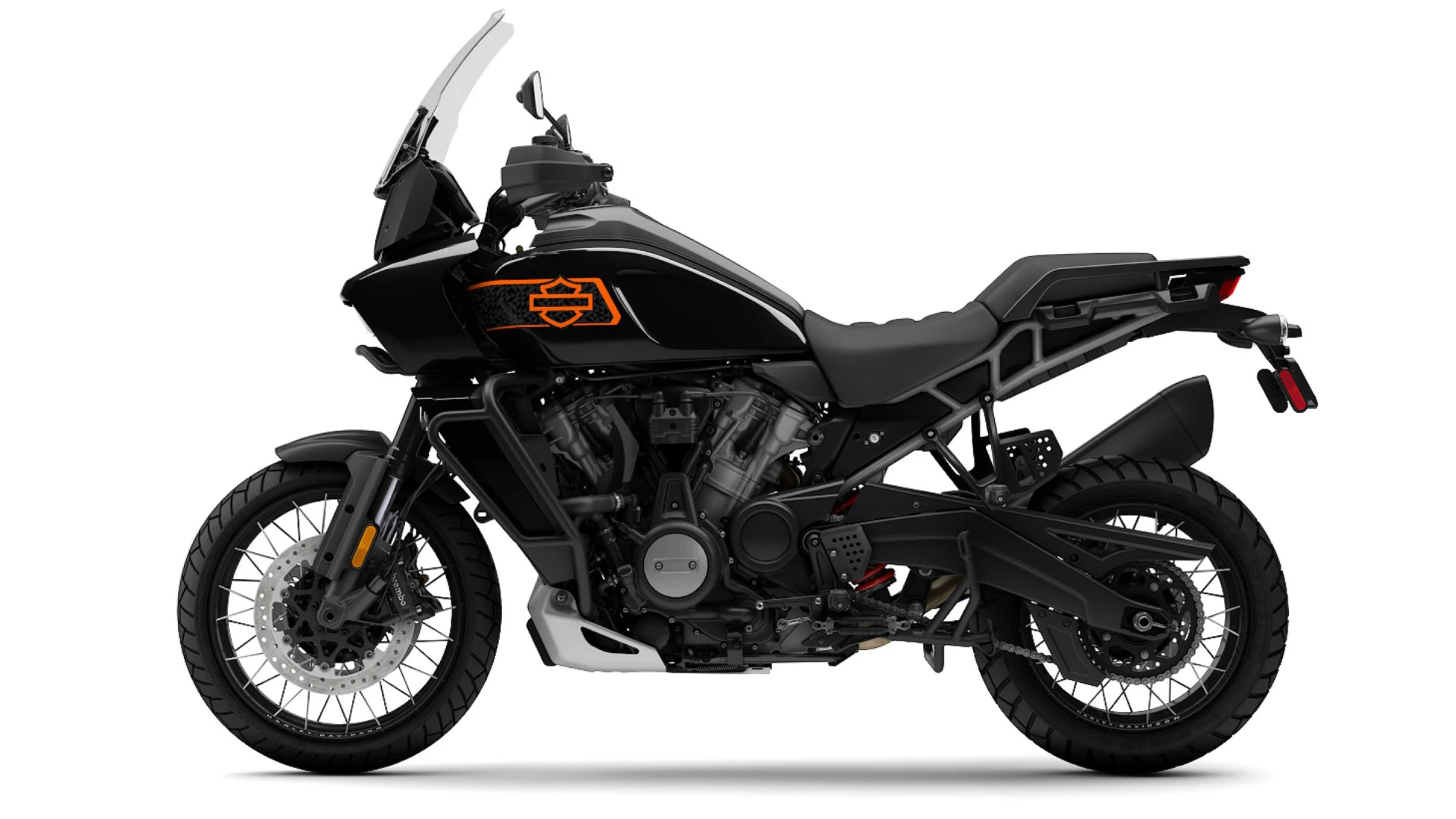

The 2026 Harley-Davidson® Pan America® 1250 Special is an adventure motorcycle engineered around a high-output Revolution® Max 1250 engine, an electronically managed chassis, advanced rider assistance technologies, and a comprehensive suite of connectivity features. Designed to combine performance, control, comfort, and rider information systems, the model integrates modern electronic management with a structurally focused chassis and long-travel suspension package. Its specifications highlight a balance of power, handling capability, rider ergonomics, and safety-oriented technology. From the engine and drivetrain to the suspension, braking systems, display technology, and electronic rider aids, the 2026 Harley-Davidson® Pan America® 1250 Special incorporates a broad range of functional equipment intended to support a wide variety of riding conditions.
Engine and Powertrain
The 2026 Harley-Davidson® Pan America® 1250 Special is powered by the Revolution® Max 1250 engine, a liquid-cooled powerplant with a displacement of 1,252 cc, or 76.4 cubic inches. The engine features a 4.134-inch bore and a 2.846-inch stroke, producing a compression ratio of 13.0:1. These dimensions contribute to an engine configuration focused on delivering substantial output across the operating range. Rated output is 150 horsepower at 8,750 rpm, while peak torque is listed at 94 ft-lb at 6,750 rpm. The combination of displacement, compression ratio, and power figures establishes the 2026 Harley-Davidson® Pan America® 1250 Special as a technically advanced motorcycle with a strong emphasis on performance.
Valve Train and Induction System
The Revolution® Max 1250 uses a chain-driven dual overhead camshaft configuration with four valves per cylinder. Hydraulic self-adjusting lifters reduce routine adjustment requirements while maintaining consistent valve operation. Intake and exhaust variable valve timing are incorporated into the design, allowing valve events to be managed across different engine speeds. Fuel delivery is handled by Electronic Sequential Port Fuel Injection, providing precise fuel metering throughout the operating range. The intake system utilizes a downdraft configuration with tuned velocity stacks and washable filter media, supporting efficient airflow while allowing serviceable filter maintenance.
Exhaust and Lubrication
The exhaust system follows a 2-into-1-into-1 layout and incorporates a catalyst within the header assembly. This configuration consolidates exhaust flow through a compact arrangement while integrating emissions-control hardware into the system design. Engine lubrication is managed through a semi-dry sump system, which supports oil control under a variety of operating conditions. Together, the intake, exhaust, and lubrication systems form an integrated package designed to support the engine’s performance characteristics. These components also contribute to the overall engineering approach used throughout the motorcycle.
Drivetrain and Transmission
The drivetrain combines a gear-driven primary system with a chain final drive. The primary drive uses a 49/89 ratio, while the final drive uses a 19/48 ratio. This arrangement transfers power from the Revolution® Max engine to the rear wheel through a direct and mechanically efficient system. The drivetrain is paired with a mechanical assist-and-slip clutch featuring an eight-plate wet design. The assist-and-slip functionality helps manage clutch operation while supporting smooth engagement and controlled deceleration characteristics.
Six-Speed Gearbox
A six-speed transmission is standard equipment on the 2026 Harley-Davidson® Pan America® 1250 Special. Overall gear ratios are 13.11 in first gear, 9.687 in second, 7.509 in third, 6.057 in fourth, 5.08 in fifth, and 4.436 in sixth. The progression between gears provides a broad operating range for varying riding conditions and engine speeds. Each ratio contributes to the motorcycle’s ability to efficiently utilize the available power and torque produced by the Revolution® Max 1250 engine. The transmission and clutch package work together as a unified system intended to deliver consistent drivetrain performance.
Chassis Architecture and Dimensions
The chassis of the 2026 Harley-Davidson® Pan America® 1250 Special utilizes a stressed-member design built around a high-strength low-alloy steel trellis frame. The frame incorporates stamped, cast, and forged junctions that are MIG welded together. An aluminum forged mid-structure forms part of the overall chassis assembly, contributing to the motorcycle’s structural design. This approach allows the chassis to integrate multiple materials and manufacturing methods while maintaining rigidity and durability. The motorcycle also uses a one-piece cast aluminum swingarm that complements the frame architecture.
Geometry and Physical Dimensions
The 2026 Harley-Davidson® Pan America® 1250 Special measures 89.4 inches in length, 38.4 inches in overall width, and 59.4 inches in overall height. Wheelbase is specified at 62.4 inches, while rake and fork angle are both listed at 25 degrees. Trail measures 4.3 inches, contributing to the motorcycle’s steering geometry. These dimensions establish the motorcycle’s overall physical footprint and influence its handling characteristics. The geometry figures reflect a design intended to balance directional stability with responsive steering behavior.
Seat Height and Ground Clearance
The 2026 Harley-Davidson® Pan America® 1250 Special provides multiple seat height configurations to accommodate rider preferences and suspension specifications. Laden seat height measures 31.1 inches in the low position and 32.0 inches in the high position. When equipped with optional Adaptive Ride Height suspension, laden seat heights are reduced to 30.4 inches and 31.4 inches, respectively. Unladen seat height measures 33.4 inches in the low position and 34.4 inches in the high position, while optional Adaptive Ride Height produces unladen heights of 32.7 inches and 33.7 inches. Ground clearance is listed at 6.9 inches in standard configuration and 8.1 inches with Adaptive Ride Height suspension.
Weight and Capacity
The 2026 Harley-Davidson® Pan America® 1250 Special has an as-shipped weight of 542 pounds and a running-order weight of 578 pounds. The Gross Vehicle Weight Rating is specified at 1,003 pounds. Gross axle weight ratings are 399 pounds for the front axle and 665 pounds for the rear axle. Fuel capacity is 5.6 gallons, with a reserve fuel capacity indication of 1 gallon through the fuel injection warning system. Oil capacity with a filter is 4.75 quarts, while coolant capacity is listed at 2.32 quarts.
Suspension, Wheels, and Tires
The suspension package combines electronically controlled damping systems with long-travel components at both ends of the motorcycle. The front suspension uses a 47 mm inverted fork featuring electronically adjustable semi-active damping control. Aluminum fork triple clamps are integrated into the front-end assembly. An optional version adds Adaptive Ride Height functionality while retaining the electronically adjustable semi-active damping system. This configuration allows suspension operation to be managed electronically while maintaining substantial travel capability.
Rear Suspension System
At the rear, the motorcycle uses a linkage-mounted monoshock with automatic electronic preload control. Semi-active compression and rebound damping are incorporated into the design, allowing the system to manage suspension behavior electronically. An optional configuration adds Adaptive Ride Height to the rear suspension package while retaining the same preload and damping functions. Suspension travel measures 7.5 inches at both the front and rear. The equal travel figures contribute to a balanced suspension specification across the motorcycle.
Wheels and Tires
Standard wheel equipment consists of satin black cast aluminum wheels. The front wheel measures 19 inches in diameter and 3 inches in width, while the rear wheel measures 17 inches in diameter and 4.5 inches in width. Optional anodized aluminum tubeless laced wheels are also available. Tire equipment consists of Michelin® Scorcher Adventure radial tires. The front tire is specified as a 120/70R19 60V, while the rear tire uses a 170/60R17 72V specification.
Braking System and Safety Technology
The braking package uses dual front rotors and a single rear rotor. Front braking hardware consists of radially mounted monoblock four-piston calipers paired with dual floating tower-mounted rotors. Front rotor diameter measures 12.6 inches with a thickness of 0.17 inches. Rear braking is handled by a floating single-piston caliper and a solid uniform expansion rotor measuring 11 inches in diameter and 0.2 inches thick. This hardware configuration provides braking capability through dedicated front and rear components designed to operate alongside the motorcycle’s electronic safety systems.
Rider Safety Enhancements
The 2026 Harley-Davidson® Pan America® 1250 Special includes an Anti-lock Brake System, Electronic Linked Braking, Traction Control System, Drag-torque Slip Control System, Vehicle Hold Control, Tire Pressure Monitoring System, and Wheel Lift Mitigation. These systems work together to support braking performance, traction management, and vehicle stability. The integration of multiple electronic rider aids allows several vehicle functions to be monitored and managed through dedicated control systems. Tire pressure monitoring also provides ongoing information related to tire condition. The resulting package delivers a broad range of rider assistance technologies as standard equipment.
Cornering Rider Safety Systems
In addition to the standard safety systems, the motorcycle includes a complete suite of cornering rider safety enhancements. These systems include Cornering Enhanced Anti-lock Brake System, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control System, Cornering Drag-Torque Slip Control System, and Enhanced Lift Mitigation. The cornering-specific technologies expand the functionality of the motorcycle’s rider assistance systems by incorporating lean-angle-sensitive operation. These electronic features complement the chassis, suspension, and braking hardware already present on the motorcycle. Together, they form an integrated rider support package.
Electrical System and Lighting
The electrical system utilizes a sealed maintenance-free absorbed glass mat battery rated at 12 volts and 17.5 Ah, with 310 cold-cranking amps at 0°F. Charging is managed through a three-phase 45-amp system capable of producing 390 watts at 13 volts and 1,300 rpm. Maximum output is listed at 585 watts at 13 volts and 2,500 rpm. Starting duties are handled by a 0.9 kW electric starter with direct-drive starter motor engagement. These components form the foundation of the motorcycle’s electrical infrastructure and support its electronic systems and lighting equipment.
LED Lighting Equipment
Lighting components use LED technology throughout the motorcycle. The headlamp is a Daymaker® Adaptive LED unit featuring a six-segment LED banking lamp. Rear lighting consists of an all-LED tail and stop lamp with signature tail lighting. Front and rear turn signals use LED Bullet Turn Signals. The use of LED lighting across multiple systems creates a consistent approach to illumination and signaling functions throughout the motorcycle.
Display, Connectivity, and Rider Information
The 2026 Harley-Davidson® Pan America® 1250 Special features a 6.8-inch color TFT touchscreen display with a 173 mm viewable area. The display serves as the primary rider interface and provides access to a broad range of vehicle information. Available information includes speedometer, gear position, odometer, fuel level, clock, trip information, ambient temperature, low-temperature alerts, side-stand alerts, tip-over alerts, cruise information, range data, and tachometer indication. The display functions as a centralized information hub that combines vehicle monitoring with connectivity features. Its touch-enabled interface provides direct interaction with supported functions and settings.
Bluetooth® and Device Integration
Bluetooth® capability allows phone pairing for calls, media functions, and navigation through the H-D App. Hands-free mobile phone functionality is included as standard equipment. Rider and passenger intercom functionality is supported through compatible headset equipment. Vehicle information screens provide access to Tire Pressure Monitoring System information, engine temperature, battery voltage, and ambient air temperature. Text-to-speech language support is dependent on the connected phone, while navigation is delivered through the H-D Mobile App.
USB Charging and Convenience Features
The motorcycle includes USB-C connectivity for charging and instrument updates. USB charging capability is rated at 5 volts. A USB C-Type power outlet with 5-volt, 2.4-amp output is also provided. These charging functions support compatible devices while providing convenient access to power during operation. The inclusion of USB-C connectivity aligns with the motorcycle’s broader focus on integrated technology and rider information systems.
