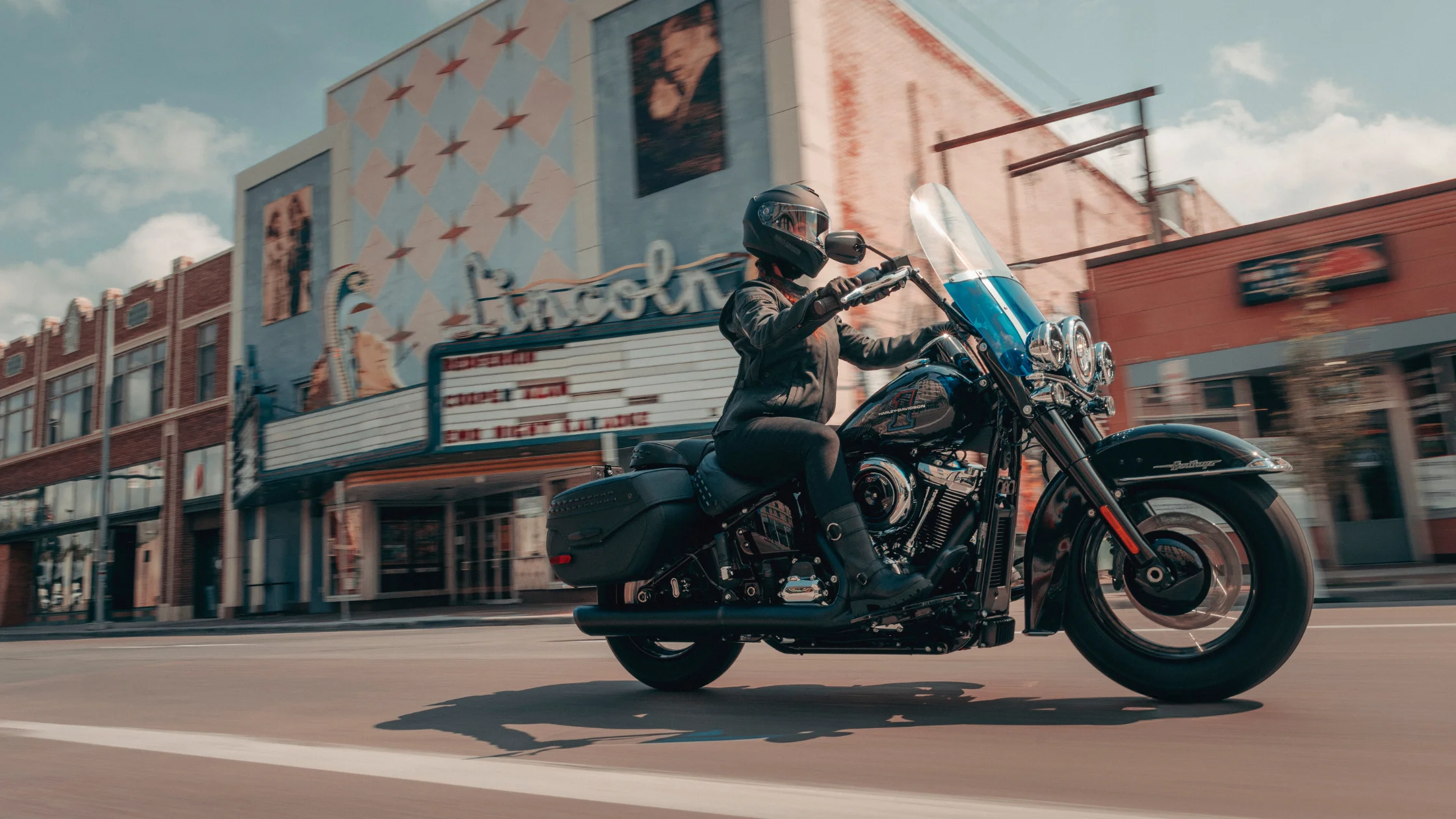

The 2026 Harley-Davidson® Heritage Classic presents a detailed combination of displacement-driven performance, modern electronic rider aids, and structurally engineered chassis components. This model is equipped with the Milwaukee-Eight® 117 Classic engine, a 6-Speed Cruise Drive® transmission, a steel tubular frame, and a comprehensive suite of braking and traction technologies. Every measurement, ratio, and specification contributes to predictable output, stable handling, and controlled braking. The 2026 Harley-Davidson® Heritage Classic integrates mechanical precision with updated safety systems while maintaining a straightforward instrumentation layout and LED lighting configuration.
Milwaukee-Eight® 117 Classic Engine Architecture
The 2026 Harley-Davidson® Heritage Classic uses the Milwaukee-Eight® 117 Classic engine with a displacement of 117 cubic inches, equivalent to 1,923 cubic centimeters. The engine features a bore of 4.075 inches and a stroke of 4.5 inches, producing a compression ratio of 10.3 to 1. The configuration uses pushrod-operated overhead valves with hydraulic, self-adjusting lifters and four valves per cylinder.
Engine torque measures 120 foot-pounds at 2,500 rpm under J1349 testing standards. Horsepower output reaches 98 HP, or 73 kW, at 4,600 rpm. The torque curve emphasizes strong low-rpm response, supporting steady acceleration from low speeds and stable cruising at highway pace. Fuel delivery is managed by Electronic Sequential Port Fuel Injection. The system meters fuel precisely to optimize combustion efficiency and maintain consistent throttle response across operating ranges.
The engine incorporates a 2-into-1 exhaust system with a catalyst integrated into the header assembly. Lubrication uses a pressurized dry-sump system equipped with an oil cooler to manage operating temperatures during extended operation. The air intake system includes a 9-inch round air cleaner with a center bolt cover and washable fiberglass filter media. Recommended fuel is 91 octane or higher based on the R+M/2 method.
Six-Speed Cruise Drive® Transmission and Final Drive Ratios
Power from the Milwaukee-Eight® 117 engine transfers through a 6-Speed Cruise Drive® transmission. The gear ratios are engineered to provide controlled acceleration in lower gears and reduced engine speed during highway cruising. First gear carries an overall ratio of 9.311. Second gear is 6.454. Third gear measures 4.793. Fourth gear is 3.882. Fifth gear registers 3.307. Sixth gear operates at 2.79, supporting efficient high-speed travel with moderated engine rpm.
The primary drive uses a chain with a 34 to 46 ratio. The final drive system uses a belt with a 32 to 66 ratio. This belt-driven configuration reduces maintenance demands and provides smooth power transfer to the rear wheel. The clutch assembly is mechanical and features a 10-plate wet design with assist and conventional operation.
Steel Frame Construction and Chassis Geometry
The chassis uses a mild steel tubular frame with a rectangular-section backbone. The frame integrates stamped, cast, and forged junctions and uses MIG welding throughout the structure. Aluminum-forged fender supports reduce weight while maintaining structural integrity. The swingarm consists of mild steel tubular sections with a stamped cross member and forged axle junctions. It also incorporates a removable belt spacer.
Chassis geometry includes a rake angle of 30 degrees and a trail measurement of 5.5 inches. The wheelbase extends to 64.2 inches. These dimensions contribute to directional stability and measured steering response. The motorcycle measures 95.1 inches in length, 36.6 inches in overall width, and 54.7 inches in overall height.
Static ground clearance measures 4.7 inches. The laden seat height is 26.3 inches with a 180-pound operator weight measurement standard. The unladen seat height measures 27.2 inches. These seat heights position the rider closer to the ground, supporting controlled stops and low-speed maneuvering.
Suspension Components and Ride Control
The front suspension uses a 49 mm telescopic fork equipped with dual-bending valve technology. The fork includes aluminum triple clamps and dual-rate springs. Front suspension travel measures 5.1 inches. This configuration balances compliance and steering precision under braking and cornering loads.
The rear suspension uses a hidden coil-over monoshock with a 56 mm stroke and hydraulic preload adjustment. Rear suspension travel measures 4.4 inches. The hydraulic preload system allows adjustment to compensate for passenger weight or cargo load without altering overall geometry.
Lean angle capability measures 27.4 degrees on both the right and left sides under J1168 testing standards. This specification defines the motorcycle’s cornering clearance and reflects the integration of chassis geometry and suspension travel.
Wheel and Tire Configuration
The standard wheel configuration includes black 9-spoke cast aluminum wheels. Both front and rear wheels measure 16 inches in diameter and 3 inches in width. An optional style features black tubeless laced wheels with 36 bright spokes, depending on region and availability.
The front tire specification is 130/90B16, 73H, bias blackwall, model D401F. The rear tire specification is 150/80B16, 77H, bias blackwall, model D401T. These tires are part of the Dunlop® Harley-Davidson® Series. The bias construction supports load stability and durability across extended mileage use.
Brake System Engineering and Electronic Stability Systems
The braking system uses a 4-piston fixed front caliper paired with a single 11.8-inch solid rotor measuring 0.2 inches thick. The front brake is not dual-disc. The rear brake uses a 2-piston floating caliper and an 11.5-inch solid rotor with a thickness of 0.23 inches. The rotors are designed with uniform expansion characteristics to maintain braking consistency under heat buildup.
The anti-lock braking system is standard. The motorcycle also includes a Traction Control System and a Drag-torque Slip Control System. The Tire Pressure Monitoring System is integrated into the instrumentation to provide active pressure data.
Cornering-enhanced systems further refine stability management. Cornering Enhanced ABS adjusts braking intervention based on lean angle. Cornering Enhanced Traction Control System modifies throttle intervention during angled riding. Cornering Drag-torque Slip Control System manages rear-wheel slip during aggressive downshifts while leaned. Electronic Linked Braking is not included on this model. Vehicle Hold Control and lift mitigation systems are also not included.
Electrical System Capacity and LED Lighting
The electrical system includes a sealed, maintenance-free absorbed glass mat battery rated at 12 volts and 17.5 amp-hours with 310 cold cranking amps at 0 degrees Fahrenheit. Charging capacity is provided by a three-phase 48-amp system. Output measures 364 watts at 13 volts at 900 rpm and reaches a maximum of 624 watts at 13 volts at 2,000 rpm.
Starting is managed by a 1.6 kW electric starter with solenoid shift engagement. All primary lighting components use LED technology. The headlamp integrates low beam, high beam, and signature position lighting in a single LED assembly. The tail and stop lamp use LED illumination. Front turn signals are LED bullet-style units, and the rear uses an LED bullet light bar. Auxiliary LED fog lamps supplement forward visibility.
A USB C-Type power outlet provides 5 volts at 2.4 amps for device charging. The motorcycle does not include a GPS system or reverse function.
Instrumentation and Rider Information Display
Instrumentation centers on a 5-inch analog speedometer with integrated digital display elements. The display includes a digital gear indicator, odometer, trip functions, fuel level, and fuel range calculation. Ride modes are displayed within the interface. Indicators for heated gear, traction control, ABS, and cruise control are integrated. Tire pressure monitoring data is shown within the display. A tachometer readout and clock function are also included.
Infotainment features such as AM, FM, Bluetooth® connectivity, navigation, and speaker systems are not included. The motorcycle maintains a focused instrumentation layout dedicated to vehicle performance and safety data.
Capacity, Fluids, and Operational Specifications
Fuel capacity measures 5 gallons, with a 1-gallon reserve indicated by a warning light under fuel injection operation. Oil capacity with filter measures 5 quarts. Transmission capacity measures 1 quart. Primary chain case capacity measures 1.25 quarts. The motorcycle does not use liquid coolant.
Weight as shipped measures 690 pounds. Weight in running order measures 719 pounds. Gross Vehicle Weight Rating is 1,160 pounds. The front gross axle weight rating is 450 pounds, and the rear gross axle weight rating is 730 pounds. Luggage capacity measures 1.6 cubic feet in volume.
Fuel economy is estimated at 47 miles per gallon under city and highway combined testing conditions.
