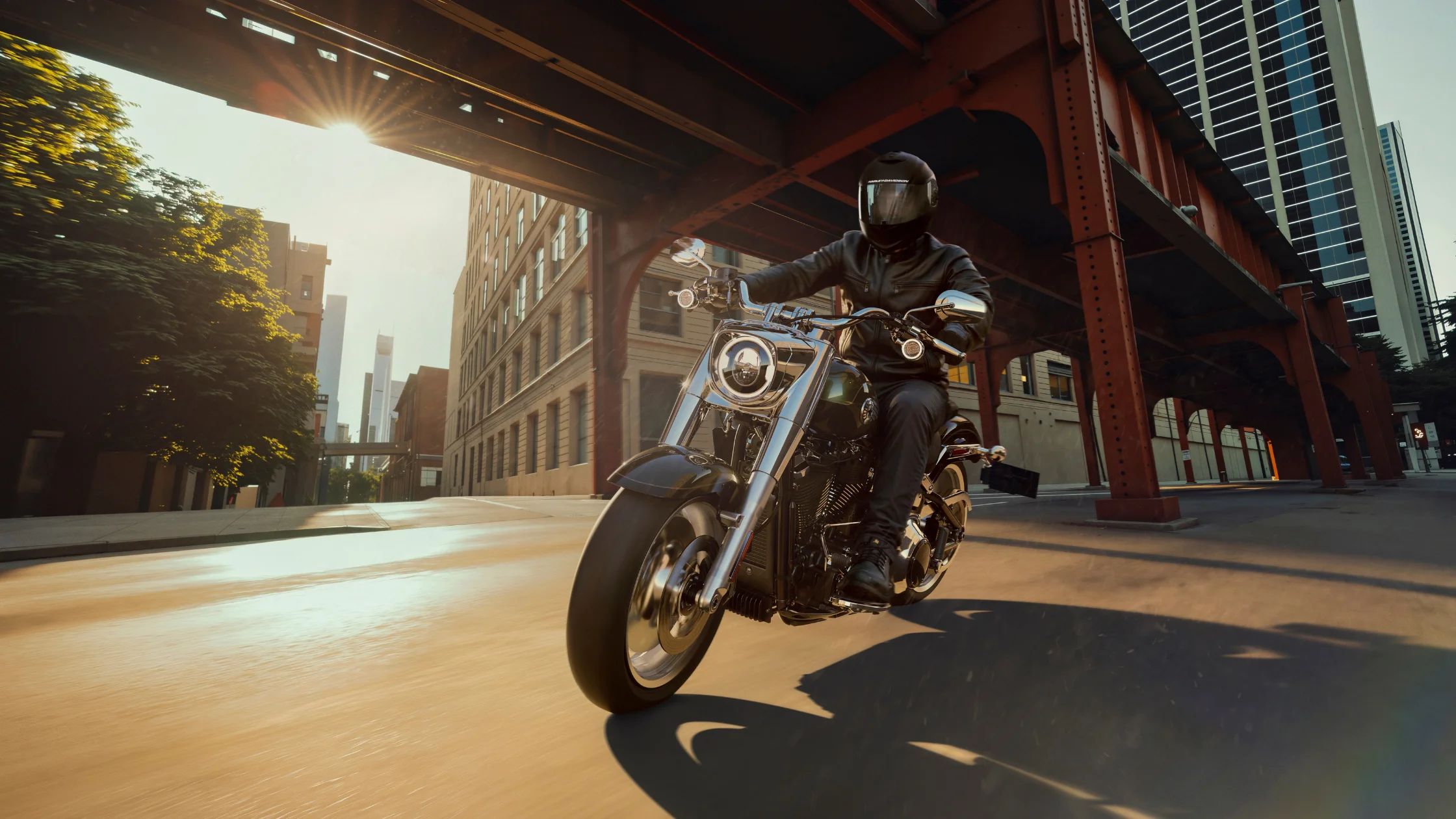

The 2026 Harley-Davidson® Fat Boy® is engineered as a high-displacement cruiser that combines large-capacity V-twin output, a rigid Softail®-based chassis, and electronically managed rider safety systems. This model integrates a Milwaukee-Eight® 117 Custom engine, lean-sensitive braking technology, a six-speed transmission, and a low-profile stance defined by its geometry and suspension configuration. Every specification contributes to measured torque delivery, predictable steering response, and consistent braking performance. The 2026 Harley-Davidson® Fat Boy® maintains traditional cruiser proportions while incorporating modern electronic controls that manage traction, braking stability, and engine behavior.
Milwaukee-Eight® 117 Custom Engine Architecture
The 2026 Harley-Davidson® Fat Boy® uses the Milwaukee-Eight® 117 Custom engine with a total displacement of 117 cubic inches, equivalent to 1,923 cubic centimeters. The engine features a bore of 4.075 inches and a stroke of 4.5 inches, producing a compression ratio of 10.3 to 1.
The valvetrain uses pushrod-operated overhead valves with hydraulic, self-adjusting lifters and four valves per cylinder. This design maintains proper valve clearance without manual adjustment and promotes consistent airflow through the combustion chamber. Fuel delivery is managed by Electronic Sequential Port Fuel Injection, which meters fuel precisely to each cylinder to maintain consistent throttle response and emissions compliance.
The engine produces 126 foot-pounds of torque at 3,000 rpm, measured under J1349 testing standards. Peak output reaches 103 horsepower, or 77 kilowatts, at 4,800 rpm. The torque curve emphasizes low and midrange power, allowing controlled acceleration from lower engine speeds. Lubrication is handled by a pressurized dry-sump system equipped with an oil cooler to regulate operating temperatures during extended riding.
Air intake passes through a Helix-style air cleaner that supports high-volume airflow. Exhaust gases exit through a 2-into-2 staggered exhaust system that incorporates a catalyst within the muffler assembly. The system balances emissions requirements with exhaust flow efficiency. The recommended fuel specification is 91 octane or higher based on the R+M method divided by two.
Six-Speed Cruise Drive® Transmission and Drivetrain Ratios
The 2026 Harley-Davidson® Fat Boy® transfers engine output through a mechanical, 10-plate wet clutch that combines assist and conventional functions. The assist feature reduces lever effort during operation while maintaining secure engagement under acceleration. Power then moves through a six-speed Cruise Drive® transmission designed to provide wide ratio spacing between gears.
The overall first gear ratio measures 9.311. Second gear is 6.454, third gear is 4.793, fourth gear is 3.882, fifth gear is 3.307, and sixth gear is 2.79. These ratios allow progressive acceleration through the lower gears and reduced engine speed during highway travel in sixth gear. The primary drive uses a chain with a 34 to 46 ratio, and the final drive uses a belt with a 32 to 66 ratio.
Transmission capacity is 1 quart, and the primary chain case holds 1.43 quarts of lubricant. Engine oil capacity with filter is 5 quarts. These fluid capacities support consistent lubrication across engine and drivetrain components.
Structural Framework and Steering Geometry
The chassis uses a mild steel tubular frame with a rectangular-section backbone. Stamped, cast, and forged junctions reinforce key stress points. The frame components are MIG welded to ensure structural consistency and durability. Aluminum forged fender supports reduce unsprung weight while maintaining rigidity.
The swingarm uses mild steel tubular sections combined with a stamped cross-member and forged axle junctions. It is MIG welded and includes a removable belt spacer to facilitate service operations.
The wheelbase measures 65 inches. Rake is set at 30 degrees, with a fork angle of 32 degrees and a trail measurement of 4.1 inches. This combination produces stable straight-line tracking while allowing controlled steering response at lower speeds. The lean angle reaches 25.6 degrees on both the left and right sides, measured using J1168 testing standards.
Static ground clearance is 4.9 inches. The motorcycle measures 93.1 inches in length, 40 inches in overall width, and 44.1 inches in height. The seat height measures 25.9 inches when laden and 26.6 inches when unladen. The low seat height supports controlled stops and stable low-speed maneuvering.
Suspension Engineering and Ride Control
The front suspension uses a 49-millimeter telescopic fork with dual-bending valve technology. Aluminum fork triple clamps secure the assembly. Dual-rate springs allow progressive response to varying road conditions. Suspension travel at the front measures 5.1 inches.
The rear suspension consists of a hidden, free-piston, coil-over monoshock with a 43 millimeter stroke. Hydraulic preload adjustment enables riders to adapt rear suspension settings to accommodate changes in load or riding conditions. Rear suspension travel measures 3.4 inches. The hidden design preserves a hardtail-style appearance while delivering modern damping performance.
Weight as shipped is 668 pounds. Weight in running order is 694 pounds. Gross Vehicle Weight Rating is 1,175 pounds. The Gross Axle Weight Rating measures 450 pounds at the front and 760 pounds at the rear. These figures define load distribution limits and structural capacity.
Wheels, Tires, and Road Contact
The 2026 Harley-Davidson® Fat Boy® rides on machined Lakester cast aluminum wheels. The front wheel measures 18 inches in diameter and 4.5 inches in width. The rear wheel also measures 18 inches in diameter and 8 inches in width. Tire selection consists of Michelin® Scorcher 11 tires at both ends.
The front tire specification is 160 over 60 R18 with a 70V rating and blackwall construction. The rear tire measures 240 over 40 R18 with a 79V rating. The wide rear tire increases contact patch width during acceleration and contributes to rear stability. Tire Pressure Monitoring System integration allows continuous monitoring of inflation status through the gauge display.
Braking Hardware and Electronic Management
Braking performance is managed by a 4-piston fixed front caliper and a 2-piston floating rear caliper. The front rotor measures 11.8 inches in diameter and 0.2 inches in thickness. The rear rotor measures 11.5 inches in diameter and 0.23 inches in thickness. Both the front and rear use silver Split 7-spoke floating rotors. The front brake system uses a single-disc configuration.
The Anti-lock Brake System is standard equipment. The system prevents wheel lock under heavy braking conditions by modulating brake pressure automatically. The Cornering Enhanced Anti-lock Brake System is also included, adjusting brake intervention based on lean angle to maintain stability during angled braking maneuvers.
Electronic Linked Braking is not included. However, the Traction Control System and Drag-torque Slip Control System are standard. The traction control system limits rear wheel spin during acceleration by adjusting engine output. Drag-torque slip control reduces rear wheel instability during aggressive downshifts by moderating engine braking. Cornering Enhanced versions of traction control and drag-torque slip control are also included, providing lean-sensitive intervention during cornering.
Electrical Output, Instrumentation, and Lighting
Electrical power is supplied by a sealed, maintenance-free absorbed glass mat battery rated at 12 volts and 17.5 amp-hours with 310 cold cranking amps at 0 degrees Fahrenheit. Charging is handled by a three-phase, 48 amp system capable of producing 364 watts at 13 volts and 900 rpm, with a maximum output of 624 watts at 13 volts and 2,000 rpm.
Starting is accomplished through a 1.6-kilowatt electric starter with solenoid shift engagement. Lighting uses full LED technology. The headlamp includes low and high beam functions with signature position lighting. Tail, stop, and turn signals use bullet-style LED units at the front and rear.
Instrumentation centers on a 5-inch analog speedometer combined with a digital display. The display provides gear position, odometer, fuel level, ride modes, heated gear status, traction control indicator, ABS indicator, tire pressure monitoring system readout, cruise control indicator, clock, trip meter, range, and tachometer information. A USB C-Type power outlet delivers 5 volts at 2.4 amps for device charging.
Fuel Capacity and Efficiency Metrics
Fuel capacity measures 5 gallons. A 1-gallon reserve warning light alerts the rider when fuel reaches a lower threshold. Estimated fuel economy is 47 miles per gallon based on city and highway testing. Coolant capacity is not applicable because the engine is air- and oil-cooled. Luggage capacity is not specified for this model.
