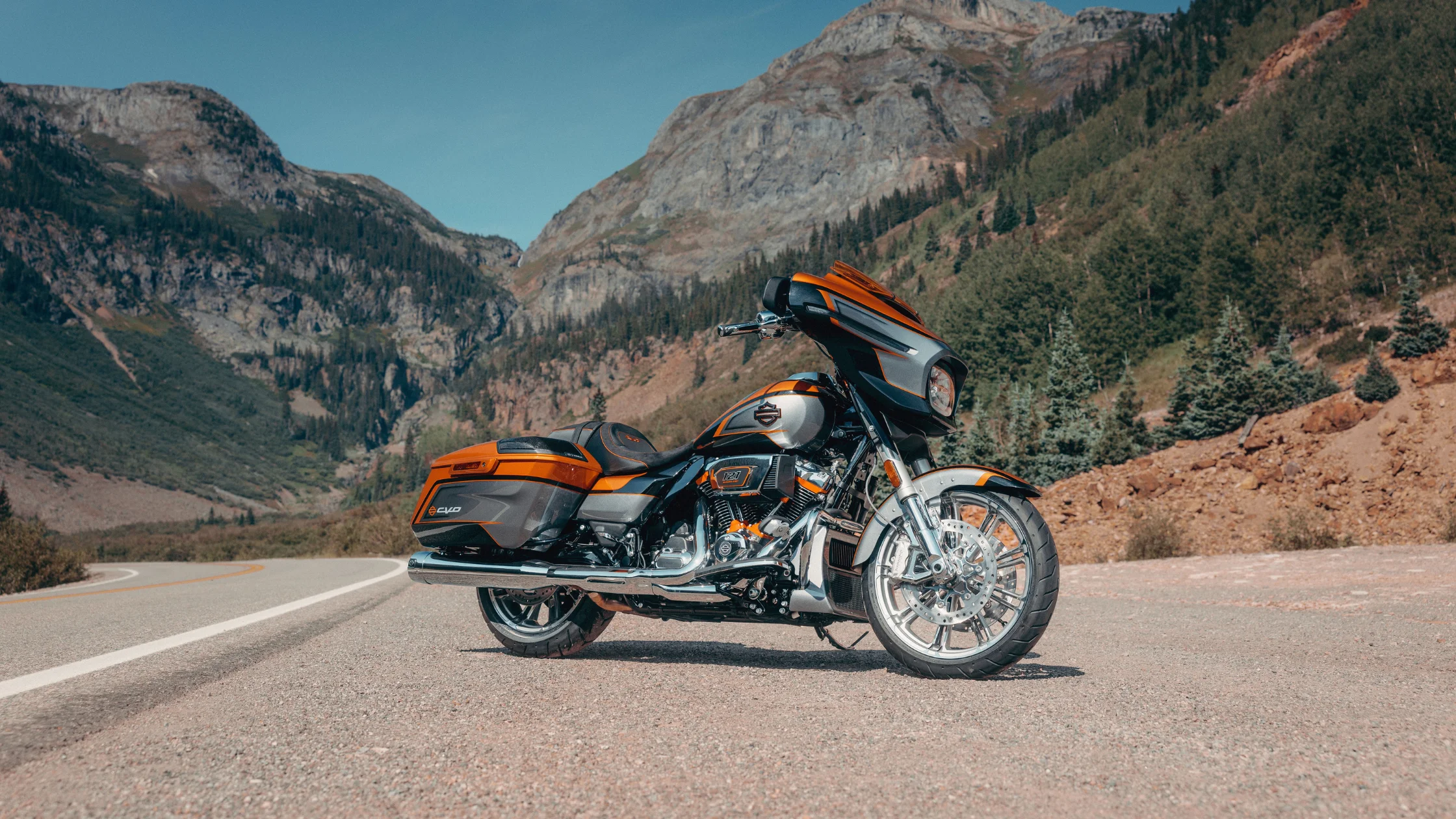

The 2026 Harley-Davidson® CVO™ Street Glide® is engineered as a high-capacity touring motorcycle with a focus on mechanical efficiency, structural rigidity, and integrated rider systems. Its specifications reflect a combination of large-displacement engine output, carefully balanced chassis geometry, and a comprehensive electronic architecture. The model measures 94.9 inches in length, 38.4 inches in width, and 53.1 inches in height, with a wheelbase of 64 inches. These dimensions contribute to directional stability during sustained highway operation while maintaining predictable maneuverability at lower speeds.
Seat height is set at 26.7 inches in the laden condition, with an unladen height of 28.2 inches. Ground clearance measures 5.5 inches, supporting consistent operation across varied road surfaces. The motorcycle has a running weight of 838 pounds and a gross vehicle weight rating of 1,360 pounds. Fuel capacity is 6 gallons, supported by a 1-gallon reserve indicator. Luggage capacity totals 2.2 cubic feet, allowing for extended travel requirements without compromising balance.
Engine Architecture and Output Characteristics
The 2026 Harley-Davidson® CVO™ Street Glide® uses the Milwaukee-Eight® VVT 121 engine, configured with a displacement of 121 cubic inches or 1,977 cubic centimeters. The engine employs a pushrod-operated overhead valve design with four valves per cylinder and hydraulic self-adjusting lifters. This configuration reduces maintenance requirements while maintaining consistent valve operation across varying engine speeds.
The bore measures 4.075 inches, and the stroke is 4.625 inches. These dimensions support torque-focused performance. The compression ratio is set at 11.4 to 1, enabling efficient combustion under controlled conditions. The engine produces 115 horsepower at 4,500 revolutions per minute and generates 139 foot-pounds of torque at 3,000 revolutions per minute. This torque delivery range supports steady acceleration and load handling.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection, which meters fuel precisely based on engine demand. The lubrication system uses a pressurized dry-sump design that maintains oil distribution during extended operation. The intake system includes a washable synthetic felt air cleaner, and the exhaust is configured as a 2-1-2 dual system to maintain balanced airflow and emission control.
Drivetrain Configuration and Gear Ratios
Power is transmitted through a chain-driven primary system with a 34 to 46 ratio and a belt-driven final system with a 32 to 68 ratio. This combination provides durability and reduced maintenance compared to fully chain-driven systems. The transmission is a 6-Speed Cruise Drive® unit, designed to support both low-speed control and sustained high-speed travel.
Gear ratios are structured to provide gradual transitions between speeds. First gear has an overall ratio of 9.593, followed by 6.65 in second gear, 4.938 in third gear, 4.0 in fourth gear, 3.407 in fifth gear, and 2.875 in sixth gear. This progression supports controlled acceleration and efficient engine speed management at cruising velocities.
The clutch is a mechanically actuated 10-plate wet system with assist and slip functionality. The assist mechanism reduces lever effort during engagement, while the slip function limits rear wheel instability during downshifting. This contributes to smoother transitions between gears and improved rider control.
Frame Construction and Structural Design
The frame of the 2026 Harley-Davidson® CVO™ Street Glide® uses a mild steel tubular construction with a two-piece stamped and welded backbone. Cast and forged junctions reinforce areas subject to higher stress. Twin down tubes provide additional rigidity, while the rear section is a bolt-on structure with forged fender supports. The entire frame is assembled using MIG welding to ensure consistent structural integrity.
The steering geometry includes a rake angle of 26 degrees and a fork angle of 30 degrees. Trail is measured at 6.7 inches. These values are selected to balance steering response with directional stability. The swingarm is constructed from mild steel with forged junctions and welded sections, providing consistent rear wheel alignment under load conditions.
Suspension Systems and Ride Stability
Front suspension is managed by 47 mm inverted forks, which increase rigidity compared to conventional fork designs. This configuration improves front-end feedback during braking and cornering. Front suspension travel is 4.6 inches, allowing for controlled absorption of surface irregularities.
Rear suspension consists of dual adjustable emulsion shocks. The left shock includes remote preload adjustment, while the right shock uses threaded preload adjustment. This setup allows for compensation based on rider weight, passenger load, and cargo. Rear suspension travel is 3 inches.
Brake System Engineering and Control Integration
The braking system of the 2026 Harley-Davidson® CVO™ Street Glide® is designed with dual front floating rotors and a single rear fixed rotor. Front rotors measure 12.6 inches in diameter with a thickness of 0.18 inches. The rear rotor measures 11.8 inches in diameter with a thickness of 0.28 inches. Front calipers are 32 mm 4-piston fixed units mounted radially, while the rear uses a single axially mounted caliper.
The system includes Anti-Lock Braking System functionality to prevent wheel lock during sudden braking. Electronic Linked Braking distributes braking force between the front and rear wheels. Traction Control System manages rear wheel slip during acceleration, while Drag-Torque Slip Control System regulates torque during deceleration.
Vehicle Hold Control assists in maintaining position on inclines by holding brake pressure temporarily after release. The Tire Pressure Monitoring System provides continuous monitoring of tire conditions. Cornering enhancements adjust braking and traction parameters based on lean angle, maintaining stability during directional changes.
Wheel Configuration and Tire Specifications
The 2026 Harley-Davidson® CVO™ Street Glide® uses cast aluminum wheels with a gloss black 9-spoke design. The front wheel measures 19 inches in diameter and 3.5 inches in width, while the rear wheel measures 18 inches in diameter and 5 inches in width. These dimensions support balanced handling and load distribution.
Tires are part of the Dunlop® Harley-Davidson® Series. The front tire specification is 130/60 B19, and the rear tire specification is 180/55 B18. These tire profiles are selected to provide a combination of stability, traction, and cornering capability. Lean angles are rated at 32 degrees on both the left and right sides.
Electrical System and Lighting Configuration
The electrical system includes a sealed 12-volt battery rated at 28 amp-hours with 405 cold cranking amps. Charging is handled by a three-phase 58-amp system capable of producing up to 754 watts. This capacity supports onboard electronics and accessory usage.
The starting system uses a 1.6 kilowatt electric starter with solenoid engagement. Lighting components include an LED headlamp, LED tail and stop lights, and LED front and rear turn signals. These lighting systems are designed for consistent visibility and reduced power consumption.
A USB-C power outlet is located in the media storage compartment, providing a 15-watt charging capability for external devices.
Infotainment System and Connectivity Features
The infotainment system operates on Skyline™ OS and is displayed through a 12.3-inch full-color TFT screen. Digital gauges are integrated into the display, providing access to vehicle data such as air temperature, oil pressure, and engine idle temperature management system status.
Audio output is rated at 125 watts per channel and is delivered through four speakers. Two speakers are mounted in the fairing at 6.5 inches each, and two speakers are located in the saddlebags with dimensions of 5 by 7 inches. This configuration distributes sound evenly across the rider and passenger positions.
Connectivity includes Bluetooth® functionality for phone, media, and headset integration. Apple CarPlay® is supported through both wireless and wired connections. Navigation is integrated with traffic and weather updates through a Wi-Fi hotspot connection. Additional features include hands-free calling, intercom capability for rider and passenger, and text-to-speech functionality.
USB connectivity supports media playback and device integration through compatible adapters. The system is designed to consolidate communication, navigation, and entertainment into a single interface.
Integrated Riding Systems and Operational Data
The 2026 Harley-Davidson® CVO™ Street Glide® includes digital instrumentation that displays operational data through the infotainment interface. Information such as air temperature, oil pressure, and engine temperature is presented within the display, allowing for continuous monitoring.
The fuel economy is estimated at 45 miles per gallon under combined city and highway conditions. Fluid capacities include 5 quarts of oil with filter, 1 quart for the transmission, 1.1 quarts for the primary chain case, and 0.82 quarts of coolant. These values support extended operation intervals and consistent thermal management.
The charging and electrical systems are calibrated to support both standard operation and accessory usage without compromising performance.
